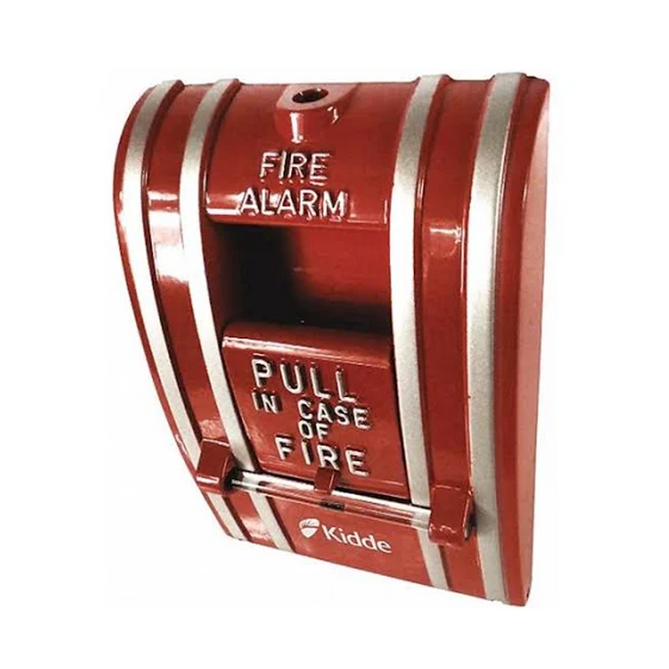

Kidde K-270 Series Non-Coded Fire Alarm Stations are sturdy, attractive, and designed for economical installation. The station is available in the following operational and functional designs: The K-270 Series provides a single action, break glass initiating station. It is available with normally open (N.O.), normally closed (N.C.) or combination N.O./N.C. contacts. The basic K-270 Series have screw terminals for field connection. The K-270A Series Manual Stations have 6 inch (150mm) wire leads. The K-270P Series is a break glass, normally open pre-signal station. The pull of the lever sounds an alarm on all pre-signal indicating devices. Inserting a key and turning it will initiate a general evacuation alarm. Screw terminals are provided for field connection. All non-coded stations are designed for either flush or surface mounting. For flush mounting a 4 inch standard North American square box with single gang plaster cover should be used. For surface mounting the K-270 Series or K-270P Series, use a cast box, steel box, or housing for weatherproof enclosure.

Additionally, the K-270 Series Non-Coded Fire Alarm Stations are designed to meet the requirements of various industries, including commercial, industrial, and institutional applications. They are suitable for use in a wide range of environments, from small offices to large public spaces, and are compatible with most fire alarm control panels.

The Kidde K-270 Series Non-Coded Fire Alarm Stations are UL listed and meet the requirements of NFPA 72, ensuring compliance with the latest fire safety standards. With their durable construction, easy installation, and reliable performance, they are an ideal choice for fire safety professionals and building owners seeking a cost-effective and efficient solution for their fire alarm needs.

Specifications:

Features:

• Pull lever
• Simple positive operation
• Break glass
• Attractive, streamline design
• Less than 5 lb pull force complies with ADA
• Solid, die-cast metal construction
