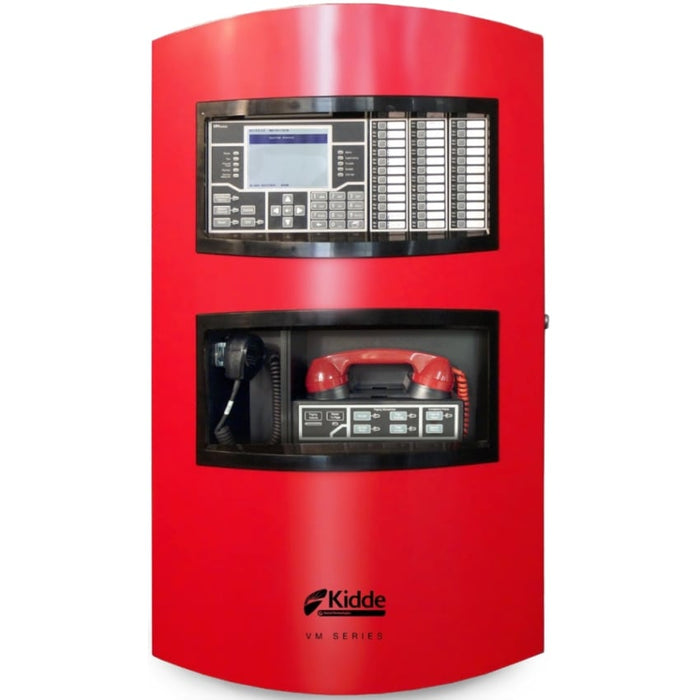

Enhance your commercial fire safety system with the Kidde Commercial VM-1R FACP. This complete system comes with a User Interface, cpu, 1 Loop w/ 2nd loop expansion, 4 class b NAC's, and a Universal 110/220v 10 amp power supply. Its red door adds a professional touch and it can be ordered with VM-SLC for a second loop.

Specifications:

Features:

• One Class A or Class B intelligent device loop standard, optional loops brings control panel capacity to 1000 devices
• 24-line by 40-character backlit LCD capable of displaying eight simultaneous events
• Optional voice evacuation and firefighter’s telephone
• Part of an end-to-end audio solution suitable for low frequency signaling in sleeping areas
• Optional network interface slots are located on the back of a swingable mounting chassis
• Electronic addressing with automatic device mapping
• Optional Ethernet port for diagnostics, programming
• Supports strobe synchronization
• Supports up to 30 R-Series remote annunciators with either Class A or Class B wiring
• Networkable up to twenty four VM control panels monitoring 24,000 intelligent points
• Patented Voltage BoostTM technology delivers constant voltage on NAC and AUX circuits — even at low battery power.
• 10 Amp UL listed power supply with universal 94 to 264 Vac input voltage
• Integrated Carbon Monoxide gas sensing with V-PCOS detectors including distinct audible signaling
• Four on-board Notification Appliance Circuits
• Room for three optional front panel LED/Switch modules
• Optional Ethernet interface
• UL2572; UL864 UUKL; UL 864 Listed for releasing applications using GSA-REL
• Optional earthquake hardening: seismic Importance Factor 1.5
