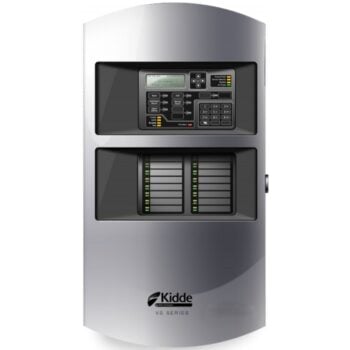

Kidde Commercial VS4-G Four loop system with one 250-point loop installed. 110v, gray door.
Availability:
In stock
Contact us for price breaks on large quantities!
The VS4 provides one Class A or Class B intelligent device loop that supports up to 250 device addresses. Loop controller modules may be added in combination to expand total system capacity in 250-point increments to up to 1,000 device addresses. VS4 panels include four NACs that may be wired for either Class A or Class B operation. This flexibility enables designers to create customized fire safety systems that meet specific project requirements, while ensuring seamless integration and reliable performance.
Specifications:
| Brand | Kidde Commercial |
| Manufacture | Kidde Global Solutions |
| Unit of Measurement | EA (Each) |
| TYPE | Control Panel |
| Condition | New |
| Weight | 16.0 lbs. |
| Dimensions | 3.85 × 15.75 × 28.00 in |
| Style | Addressable |
| Color | Gray |
| Series | Kidde VS Series |
Features:
- Auto-programming speeds installation time
- Supports V-Series intelligent modules and detectors
- Form C contacts for alarm and trouble, Form A for supervisory
- Electronic addressing with automatic device mapping
- Optional Ethernet port (SA-ETH) for central station monitoring service, programming, diagnostics and a variety of system reports
- Two programmable switches with LEDs and custom labeling
- Supports Genesis horn silence over two wires, and UL 1971-compliant strobe synchronization
- Supports GSA-REL releasing module for fire suppression
- Class B or Class A wiring
- Ground fault detection by module
- Optional multi-protocol Field Server Bridge for interface to 3rd party Building Management Systems
- Supports up to eight serial annunciators, (LCD, LED-only, and graphic interface)
- Can use existing wiring for most retrofit applications
- Upload/download remotely or locally
- Optional USB module for local printing or programming using the configuration utility on a technician’s laptop
