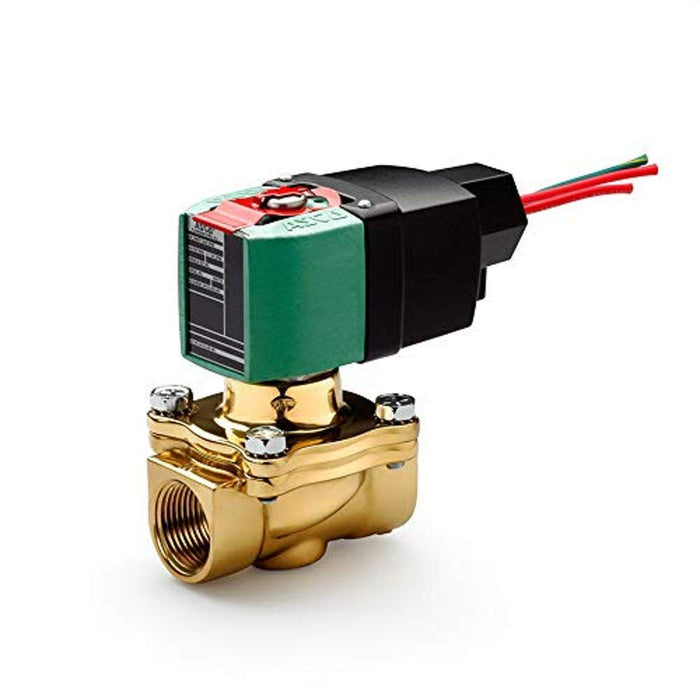

ASCO 8210P035LF 12-24/DC LEAD FREE 3/4 N/O 2-WAY
Contact us for price breaks on large quantities!
Experience reliable and efficient fluid control with the ASCO 8210P035LF valve. Made with lead-free materials, this 2-way valve is easy to install and ensures safe, contaminant-free operation. With a ¾ inch size and normally open configuration, it is ideal for a variety of industrial applications.
This valve is available with a lead-free brass body and bonnet, denoted by the suffix LF. The term "Lead-Free" is defined by the Safe Drinking Water Act (SDWA) 1417, ensuring a maximum weighted average lead content of 0.25% on the wetted surface area. These valves meet the NSF/ANSI 372 standards for low lead content, making them compliant with health and safety regulations for potable water systems. Ideal for applications requiring compliance with drinking water safety standards.
Specifications:
| Brand | ASCO |
| Manufacture | Schneider Electric |
| Unit of Measurement | EA (Each) |
| TYPE | Solenoid Valves |
| Condition | New |
| Weight | 1.0 lbs. |
| Pipe Size | 3/4 in. |
| Pipe Size | 3/4 in. |
| Orifice Size | 3/4 in. |
| Flow Factor (Cv) | 5.5 |
| Min Pressure | 0 |
| Max. Air-Inert Gas Pressure | 150 PSI |
| Max. Water Pressure | 150 PSI |
| Max. Light Oil @ 300 SSU Pressure | 125 PSI |
| Max. Light Oil @ 300 SSU Pressure | 125 PSI |
| Max. Fluid Temperature | 180°F |
Features:
- Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
- High flow valves for liquid, corrosive, and air/inert gas service
- Lead-free versions available for Safe Drinking Water Act Section 1417 compliance
