POTTER DRV-50 LED Driver Module
by POTTER
Original price
$430.53
-
Original price
$430.53
Original price
$430.53
$430.53
-
$430.53
Current price
$430.53
Availability:
In stock
Contact us for price breaks on large quantities!

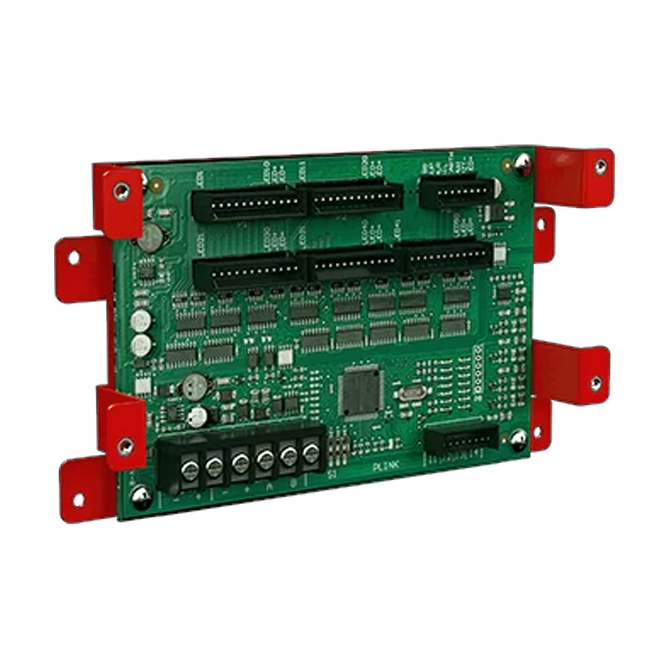

The DRV-50 is a LED driver module. The DRV-50 communicates using a RS-485 (P-Link) connection to the panel providing 50 user configurable LED outputs and 4 supervised dry contact inputs.
Specifications:
| Manufacturer | Potter Electric Signal Company, LLC |
| Brand | Potter |
| Condition | New |
| Weight | 1 lbs |
| Unit of Measurement | EA (Each) |
| Series | AFC Series: Addressable Fire Alarm Systems |
| Compatibility | AFC-100, AFC-1000, AFC-50 |
Features:
- Provides 50 user configurable LED outputs
- Provides 6 system LED outputs (Power, Earth Fault, Silenced, Alarm, Supervisory, and Trouble)
- Provides Audible/PZT and 4 supervised dry contact inputs
- LED outputs internally current limited, no external resistor required
- Maximum 31 DRV-50s for: IPA-4000, AFC-1000, P400/R, PFC-6800
- Maximum 10 DRV-50s for: IPA-100/60, AFC-100/50, ARC-100, P300/200/100, PFC-6200/6075(R)/PFC-6030, PFC-4064
- Maximum P-Link wire length is 6,500 feet
- UUKL Listed for Smoke Control
