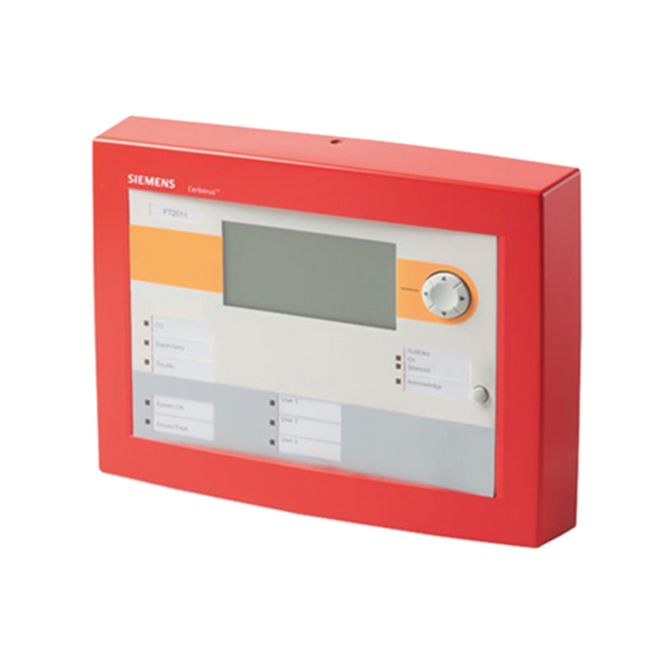

The Remote Display Terminals (Models FT2014-U3 / R3 and FT2015-U3 / R3) are remote light-emitting diode (LED) / liquid-crystal display (LCD) units that show the existing status of a Cerberus PRO 252 / 504-point system. A LED will illuminate for any given Alarm, Gas Alarm, Supervisory and Trouble Cerberus PRO-system event. A 2” -x- 4-3/4” LCD screen will give details of the event in alphanumeric form. The display screen can be scrolled to reveal additional events. Optional remote-system-control capabilities are also available. The Remote Display Terminals (as well as Model FCA2016-U1) are FM (#3010); CSFM (#7165-0067:0259) and FDNY (#6104) Approved.
Additional information
| Weight | 4 lbs |
|---|---|
| Manufacturer |
Siemens Industry, Inc. |
| Brand |
Siemens |
| Condition |
New |
| Unit of Measurement |
EA (Each) |
| Production Status |
Active |
Features
- 2” – x – 4-¾” backlit LCD screen
- Event and audible-status LEDs
- Supports ‘Class B’ (Style 4) or ‘Class A’ (Style 6) wiring
- Built-in transient protection
- Mounts in its own enclosure
- Optional system control
- Downloadable firmware
- Built-in flash electrically erasable programmable read-only memory (EEPROM)
- Scroll buttons to view additional events
- Local sounder
- UL 864 10th Edition, ULC Listed
- FM, CSFM & NYC Fire Dept. Approved
