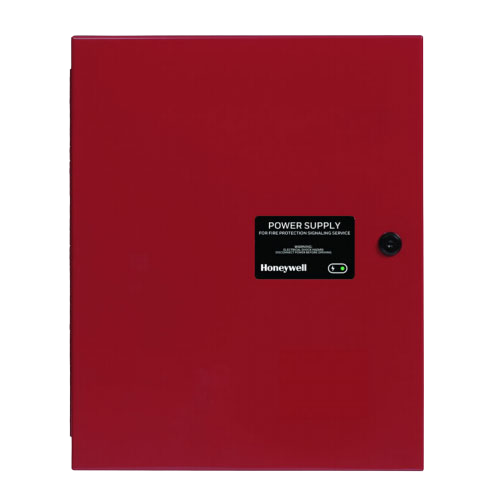

Honeywell HPF-PS10E 6 Amp and 10 Amp 24 Volt Power Supplies.

The PS Series is a remote power supply line from Honeywell Power Products and is a direct replacement for the HPF-24S6/8. PS Series provides auxiliary power, constant or resettable, suited for detectors, annunciators, door holders, and other fire alarm system peripherals. The PS Series cabinet can hold two 7 AH or 18 AH batteries and can charge up to 33 AH batteries in a separate cabinet. The HPF-PS10E is rated for 240V operation.

Additional information

Features

• Up to five (6 amp model) or seven (10 amp model) independently-configurable, powerlimited output circuits for: –Class B and/or Class A NACs –Class B and/or Class A resettable or nonresettable 24V auxiliary power –door holder power
• Converts from Class B to Class A wiring without losing any outputs using the ZNACPS converter card (sold separately)
• Optimal for powering four-wire smoke detectors, annunciators, and other system peripherals requiring regulated power
• Optional addressable control, monitor, and relay modules and power-supervision relay (EOLR-1)
• Configurable for ANSI® Temporal 3 or Temporal 4 coded output
• UL-Listed NAC synchronization using System Sensor®, Wheelock®, Gentex®, or AMSECO® appliances
• Synchronization can be triggered from FACP NAC/remote sync outputs, cascaded power supply, or a control module, single or multi, which may be housed within the power supply cabinet
• Ability to cascade up to four power supplies
• Two (6 amp model) or three (10 amp model) fully-isolated input/control circuits which can be programmed to any output
• Two Form C normally-closed trouble relays for AC Trouble and General Trouble
• 6 or 10 amp full load output, respectively, with 3 A maximum/circuit • Individual NAC power and trouble LEDs for diagnostic efficiency
• Trouble history mode for diagnostic support
• Wide range end-of-line supervision value (normal: 2-27K ohms)
• Selectable earth fault detection (enable or disable)
• AC trouble report delay timer
• Completely configurable via onboard DIP switches, no extra software required
• Self-contained in compact, locking cabinet constructed of heavy gauge steel with a corrosion-resistant powder coat chip and scratch-resistant finish
• Cabinet designed with ten double knockouts and a removable door for ease of installation and wiring
• Includes integral battery charger capable of charging up to 33 AH batteries
• Cabinet can house two 7 AH or 18 AH batteries
• Battery charger may be disabled via DIP switch for applications requiring larger batteries and external battery charger
• Removable terminal blocks accommodate up to 12 AWG (3.1mm2) wire
• Works with any UL 864 FACP which utilizes an industry-standard reverse-polarity notification circuit
