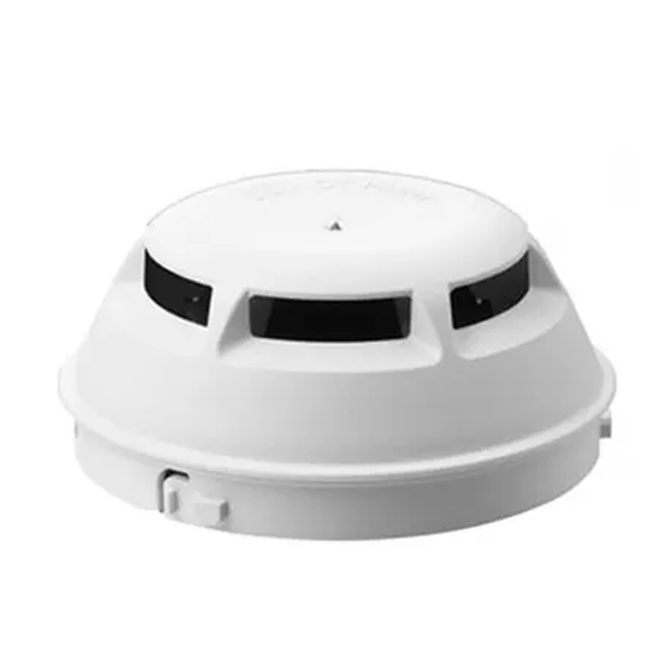

SIEMENS OP121 Conventional Optical Detector Photoelectric Smoke Magnet Test Twst-Lock
by SIEMENS
Original price
$65.49
-
Original price
$65.49
Original price
$65.49
$65.49
-
$65.49
Current price
$65.49
Availability:
In stock
Contact us for price breaks on large quantities!
The microprocessor-controlled, self-diagnostic circuitry contained in the Siemens photoelectric (conventional) smoke detector, Model OP121, eliminates an installer’s need of using burdensome sensitivity-test equipment. The Model OP121 auto-sensitivity feature originates from its internal, self-monitoring circuitry, providing dynamic verification of sensitivity and / or required maintenance.
This detector-type is commonly found on the following Siemens - Fire Safety fire alarm control panels: TXR-320, System 3 and SXL. Model OP121 contains a magnet-test feature, and has optional relay and sounder bases.
Specifications:
| Manufacturer | Siemens Industry, Inc. |
| Brand | Siemens |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Type | Smoke Detector |
| Weight | 0.3 lbs |
| Weight | 0.3 lbs |
| Dimensions | 2.00 × 4.00 × 4.00 in |
| Style | Plug-In |
| Detection Method | Photoelectric |
| Test Method | Magnet |
| Voltage Range | 16 – 27 VDC |
| Compatibility | TXR-320 |
Features:
- Magnet-test feature
- Incorporates one (1) state-of-the-art chamber for rapid, uniform response to alarm criteria (i.e. – smoke)
- Automatic sensitivity test without the need for a special tester (per NFPA 72)
- Available optional sounder base, providing an alert and evacuation signal
- UL 268 Listed [for open-area protection], UL 268A Listed [for direct in-duct use], ULC 529 Listed; FM, CSFM Approved
Open DataSheets
