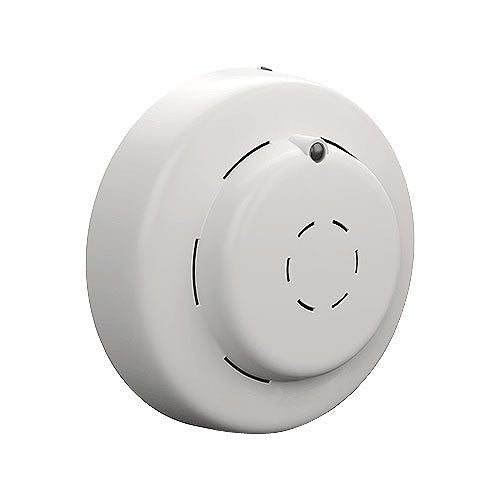

The PAD100-CD is an analog addressable carbon monoxide (CO) sensor compatible with any fire alarm control panel that has the Potter Addressable Device (PAD) protocol. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications. The sensor and base (not included) are made of a durable plastic in an off white to blend in with the ceiling. The PAD100-CD is listed to comply with the requirements of UL 2075. The sensor and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The sensor is compatible with any of the PAD series sensor bases and simply twists on. The PAD100-CD is addressed using DIP switches in the rear of the sensor and can be easily programmed in the field without special tools.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 3.93 × 3.93 × 1.43 in |
| Manufacturer |
Potter Electric Signal Company, LLC |
| Brand |
Potter |
| Condition |
New |
| Unit of Measurement |
EA (Each) |
| Color |
Off-White |
| Construction |
Plastic |
| Programming |
DIP Switch |
| Series |
PAD Series: Addressable Detectors and Bases |
| Compatibility |
AFC-100, AFC-1000, AFC-50 |
| Production Status |
Active |
Features
- Carbon Monoxide detection device compliant with UL 2075
- 8 year lifespan with built in end of life indication
- Low profile
- Walk Test mode allows for fast easy validation of sensor operation
- Reliable detection technology
- LED Alarm Indicator
- UUKL Listed for Smoke Control
