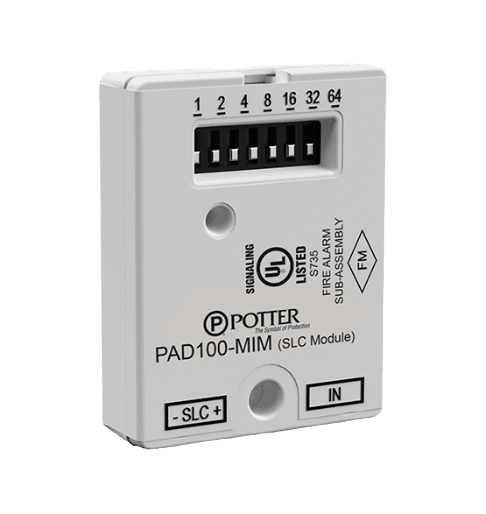

The PAD100-MIM is used to monitor the status of an initiating device(s) that contain a normally open set of dry contacts. The module is enclosed in a plastic case to protect against inadvertent shorts and ground faults. The case can be mounted using a single screw. The PAD100-MIM has a status indicator LED to indicate communication and alarm condition. In normal condition, the LED flashes when the device is being polled by the control panel. When the input is activated, the LED will flash at a fast rate.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 0.43 × 1.36 × 1.75 in |
| Manufacturer |
Potter Electric Signal Company, LLC |
| Brand |
Potter |
| Condition |
New |
| Unit of Measurement |
EA (Each) |
| Color |
White |
| Construction |
Plastic |
| Programming |
DIP Switch |
| Series |
PAD Series: Addressable Detectors and Bases |
| Compatibility |
AFC-100, AFC-50 |
| Production Status |
Active |
Features
- One Class B contact monitoring input
- Small size allows mounting in most electrical boxes
- SLC Class A, Class X & Class B
- 6” pigtail wiring connections
- UUKL Listed for Smoke Control
