PAD300-6DB POTTER 6” Detector Base

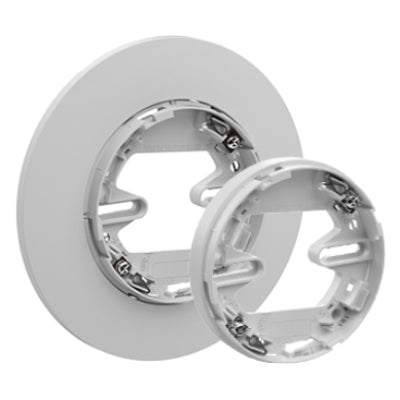

The PAD300-6DB and PAD300-4DB are low-profile, surface-mount bases used with Potter’s addressable detectors. The base uses screw clamp terminals that accept wire ranging from 22 to 12 AWG. When installed on recessed electrical boxes, the PAD300-6DB is wide enough to completely cover the back box and the immediate surrounding area. The base is equipped with a locking tab to deter unauthorized removal of the attached detector.

Specifications

Features

• Terminals marked with polarity to assist with installation
• Duplicate Terminals for In-and-out SLC Wiring
• Terminals accept 22 to 12 AWG wire sizes
• Installs on Single Gang, Double Gang, Octagon or 4” Square Box
• Locking tab prevents unauthorized detector removal
• Product includes 5-year warranty
• 6” mounting base comes with trim plate cover
