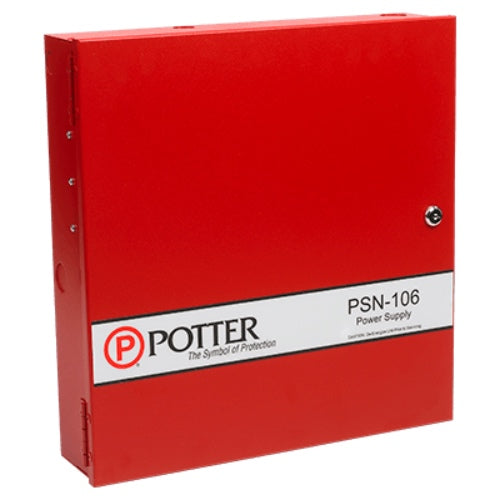

The PSN-106 notification power supply offers reliable notification power with unprecedented versatility. The power supply offers 10 amps of continuous power through 6 outputs. Each output is rated at 3 amps and it may be used continuously without any derating.
Additional information
| Weight | 12.00 lbs |
|---|---|
| Dimensions | 16.125 × 16.75 × 3.50 in |
| Manufacturer |
Potter Electric Signal Company, LLC |
| Brand |
Potter |
| Condition |
New |
| Unit of Measurement |
EA (Each) |
| Production Status |
Active |
| Type |
Power Supply |
Features
- PSN-64 has 6 amps regulated with 4 outputs
- PSN-106 has 10 amps regulated with 6 outputs
- May be configured as up to three class “A” Style “Z” notification circuits
- Two Trouble relays (5A at 30VDC) General System Trouble (programmable for AC delay) Low AC Trouble with optional delay settings
- Diagnostic LED’s Status LED’s for Active NAC and NAC Trouble conditions.
- Quadrasync feature synchronizes strobes from AMSECO, Gentex, Cooper-Wheelock and System Sensor.
- Configurable output circuits (DIP switch sets options for each circuit)
- Reference EOL allows 2K – 27K EOL value to be used
- Pass Thru mode allows the outputs to match the input signal from FACP
