SIEMENS DB-11 Low-Profile Surface-Mount Base
by SIEMENS
Availability:
This product is currently available to purchase
Contact us for price breaks on large quantities!

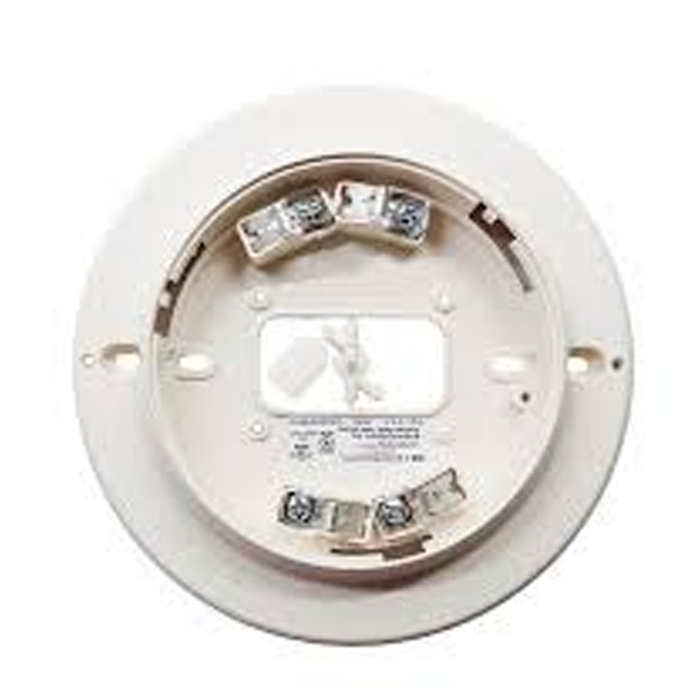

All Series 11 Smoke Detectors use the low-profile surface mounting base, DB-11, which mounts on a 4-inch octagon, square or a single gang electrical box. The base utilizes screw clamp contacts for electrical connections and self-wiping contacts for increased reliability. The base can be used with the optional LK-11 detector locking kit which contains 50 detector locks and an installation tool, to prevent unauthorized removal of the detector head. The DB-11 base has integral decorative plugs to cover the outer mounting screw holes. UL and ULC Listed, and CSFM, FM, NYMEA Approved.
Specifications:
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 6.00 × 6.00 × 1.00 in |
| Manufacturer |
Siemens Industry, Inc. |
| Brand | |
| Condition |
New |
| Unit of Measurement |
EA (Each) |
| Type |
Detector Base |
| Color |
White |
| Series | |
| Compatibility | |
| Production Status |
Active |
Features:
- Each detector base is compatible with Model ‘H’, “11” and “121” series of conventional detectors
- Each detector base also functions with the addressable Model ‘H’ series, as well as Models FD0421, FDOT421, FDOOT441, FDOOTC441 and FDT421 intelligent devices
- Models DB-11 and DB-11E amount on a 4-inch square, octagon or single-gang electrical box
- Model DB2-HR mounts on a 4?-square, double-gang electrical box
- UL 268 Listed, ULC-S529 Listed; FM, CSFM and NYC Fire Department Approved
