SIEMENS FC922-UF - 252-Point System with 300W Power Supply and Operator Interface with 24 Zone LEDs

The Cerberus PRO 252-point (Model FC922) / 504-point (Model FC924) addressable FACP is designed to meet the fire-protection needs of mid-size buildings. This advanced FACP offers features typically required in mid-size buildings in a package that is easy to install and competitively priced. Additionally, Models FC922 and FC924 are networkable, allowing the systems to fulfill the growing fire-protection needs of the building. The programming software for the 252/ 504-point fire systems is held in flash electrically erasable programmable read-only memory (EEPROM).

Specifications:

Features:

• Addressable fire alarm control panel (FACP) intended for mid-size building applications

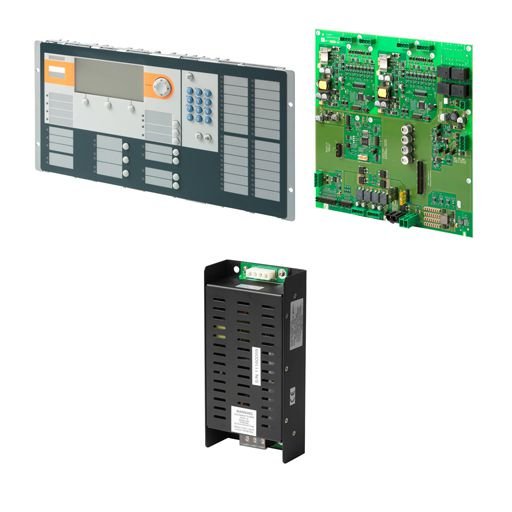

• Comprised of the following system components:
  • Operating units
  • Periphery boards
  • Power supplies
  • System enclosures ‘Walk Test’
• System features: Supports 252-to-504 addressable devices:
  • One (1) to four (4) ‘Class B’; one (1) to two (2) ‘Class A’ for Model FC922
  • One (1) to eight (8) ‘Class B’; one (1) to four (4) ‘Class A’ for Model FC924
• 10,000-event history-logging capability
• Includes one (1) ‘Class A’ or two (2) ‘Class B’ notification appliance circuits (NACs)
• Resettable and non-resettable 24VDC, [nominal] auxiliary power
• Connectivity to a leased-line / city-tie module
• Releasing module supports activation of releasing valves in pre-action / deluge systems / agent release
• Off-normal warning message prior to reset
• Fast and easy set-up with auto-configuration feature
• Networkable up to 32 panels using CV Web or up to 16 panels using SafeDLink
• Cerberus® DMS Danger Management Station can monitor and control up to 32 Models FC922 and FC924 FACPs
• Supports multiple global displays
• Digital alarm communication transmitter (DACT)
• UL 864 10th Edition Listed, ULC-S527 Listed
• FM, CSFM & NYC Fire Department Approved

Open Datasheet
