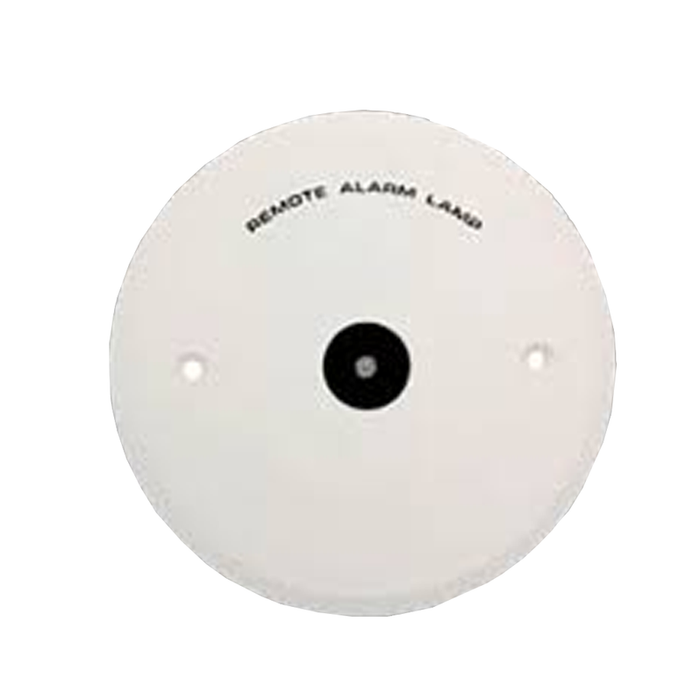

The Siemens ? Fire Safety Intelligent Remote Lamps (Models ILED-HC and ILED-HW) are designed for use with initiating devices that are concealed or otherwise not easily within view (e.g. – above suspended ceilings, under subfloors, in unexposed ventilating ducts, normally locked vaults or closed rooms, etc.) Both lamps can connect to either a Siemens 50-point, 252-point or 504-point addressable control panel. Model ILED-HC is mounted on a 4” (10.2 cm.) octagon outlet box, and Model ILED-HW gets fastened on a single-gang electrical box. Although there is no regulatory limitation for mounting the lamps, be advised that Model ILED-HC is often ceiling mounted, and Model ILED-HW is intended for wall mounting.

Specifications:

Features

• Multi-color light-emitting diodes (LEDs) [GREEN | AMBER | RED] mimics detector
• Becomes second accessory (used with relay or audible base)
• Both lamps can be addressed and independently controlled by fire alarm control panel (FACP) logic
• Both lamps can be installed anywhere on a device loop card, Model DLC
• UL Listed and ULC Listed
