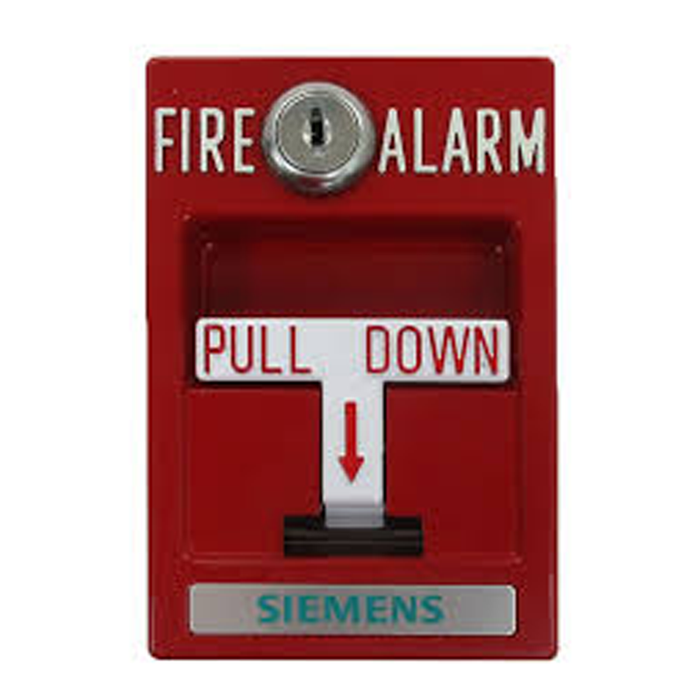

The MSM Series manual stations feature a rugged diecast metal housing that satisfies both architectural and code requirements for manual fire alarm box initiation devices. The MSM-Series box features keyed reset using the same key as the control panels.

The MSM Series models are low-profile with all surfaces either painted or plated to inhibit corrosion. These boxes have raised lettering and are shipped with two reset keys. Options include double action, institutional, weatherproof, and explosion-proof.

These stations are equipped with a S.P.S.T. switch rated at 10amps @ 120 VAC and all connections are made to a terminal block. The explosion-proof model has a D.P. D.T. switch. Both the weatherproof and explosion-proof models are shipped complete with backbox. (Backbox is optional with other models, or you can mount to standard single-gang box.)

These models are intended for use with all Siemens Building Technologies, Fire Safety Division conventional zones, but can also be used with addressable zones when used in conjunction with a TRI-Series addressable module.

The MSM series manual stations are also included in US Coast Guard (USCG) approval for use in marine and other harsh environments, when used with the Siemens 252-point and 504-point USCG approved addressable system.

Specifications:

Features

• Rugged Die-Cast Metal Housing
• Reset Key Matches Control Panel
• Single-Gang Semi-Flush Mount
• Optional Surface Mount Backbox
• Double-Action Institutional, Weather-Proof and Explosion-Proof Models Available
• UL and ULC Listed; USCG, CSFM, Approved

Open Datasheet
