UD-2000 POTTER Ud-2000 Dact For Afc/Arc/Pfc-4064

by POTTER
Original price $0.00 - Original price $0.00
Original price $0.00
$94.86
$94.86 - $94.86
Current price $94.86
Availability:
in stock

Contact us for price breaks on large quantities!

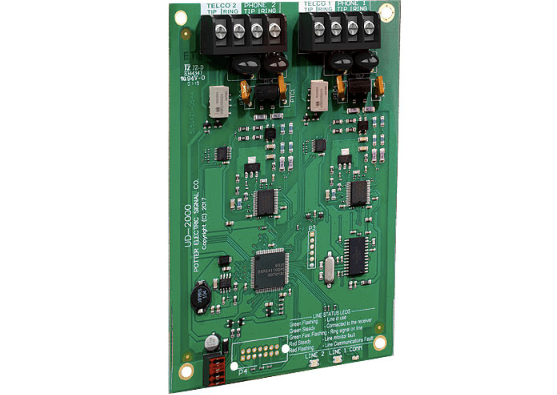

The UD-2000 Digital alarm Communicator Transmitter (DACT) provides for up to two (2) phone lines for communication to a monitoring station. The UD-2000 communicates using the SIA-DCS or Ademco Contact ID protocols. When enabled, the DACT automatically monitors each phone line or voltage and has the ability to seize the line and connect with a remote receiver. Once the communication is complete, the DACT will hang up. The DACT is provided with terminal blocks for each phone line and two RJ45 cords. In order for the DACT to work properly, it must be installed on a plain old telephone service (POTS) line or equivalent deemed by the authority having jurisdiction. The DACT must be installed before any other equipment to ensure it can seize the phone line. Phone lines are high voltage and should be run in a separate conduit from other circuits. The wire conductors connecting the DACT to the phone system should be 26 AWG or larger.

Additional information

Weight 1 lbs
Dimensions 5.00 × 19.00 × 2.00 in
Manufacturer

Potter Electric Signal Company, LLC

Brand

Potter

Condition

New

Unit of Measurement

EA (Each)

Series

AFC Series: Addressable Fire Alarm Systems

Compatibility

AFC-100, AFC-1000, AFC-50

Production Status

Active



Features

  • Allows for communication to Monitoring Station
  • Communicates using SIA-DCS or Ademco Contact ID protocols
  • For use with IPA, AFC, and ARC series Addressable Panels and PFC-4064 Conventional panel
  • Status LEDs indicate operation of DACT card
  • Installs with ease behind main panel LCD display via User Interface bracket
  • Device address is set internally to address 1

Open Datasheet
