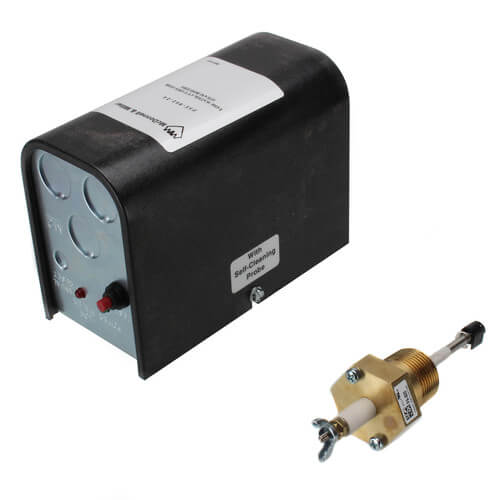

XYLEM-MM PSE-802-M-U-24 24V LWCO STEAM W/MAN RES
Contact us for price breaks on large quantities!
The XYLEM-MM PSE-802-M-U-24 24V LWCO STEAM W/MAN RES is a reliable and efficient solution for low water cut-off in steam systems. With a 24V power supply, it offers precise control and manual reset function for added safety. Keep your steam system running smoothly with this expertly designed product.
The Series PSE-800 probe type LWCO uses patented technology to monitor changes in water conductivity. When defined parameters are exceeded, the new PSE-800 makes a decision to shut the burner off based on the volatility/variability of the resistance readings. This new patented technology provides the best protection possible without turning off the boiler unless a low water condition exists. As an added measure of safety, the control will turn off the boiler if it recognizes an out-of-water condition when the sensitivity threshold is exceeded. This advanced functionality ensures maximum reliability, minimizing downtime and reducing maintenance costs for industrial boiler operations.
Specifications:
| Brand | XYLEM-MM |
| Manufacture | Xylem's Wedeco |
| Unit of Measurement | EA (Each) |
| TYPE | Float |
| Condition | New |
| Weight | 1.0 lbs. |
| Application | Steam Boilers, Hot Water Boilers |
| Type | Electronic |
| Reset Type | Automatic |
| Max Temp (F) | 250°F |
| Max Pressure (PSI) | 15 (Steam) |
| Sensitivity | 7000 ohms |
| Voltage | 24V |
| Max Ambient Temp (°F) | 120°F |
| Delay on Make Timer | 15 seconds |
| Delay on Break Timer | 10 seconds |
| Electrical Ratings (AFL) | 3.75 A @ 240 VAC, 7.2 A @ 120 VAC |
| Electrical Ratings (ALR) | 21.6 A @ 240 VAC, 43.2 A @ 120 VAC |
Features:
- Green power is on indicating LED
- Red low water indicating LED
- 30 second DOM
- Test button
- Self-Cleaning probe
- No lock out with loss of power if probe is in water
- Provisions to add water feeder of alarm
- Models available with:
- -120 VAC
- -24 VAC (meets ANSIZ21.13a specification)
- FIX2' probe (remote)
