Get efficient air venting and shut-off capabilities with the HONEYWELL EA122A1002 1/8 AUTO AIR VENT W/SHUT-OFF. Expertly designed to release air from your system and maintain optimal performance, this vent is a must-have for any industry professional. Trust in the quality and precision of HONEYWELL for all your air venting needs.

Automatic Air Vent with Built-in Shutoff Valve for Hydronic Heating Systems. Ensure efficient and reliable operation of your hydronic heating system with our innovative air vent. Featuring a built-in shutoff valve, this vent automatically eliminates air pockets and prevents system damage. Designed for easy installation and maintenance, our vent ensures consistent heat distribution and optimal system performance.

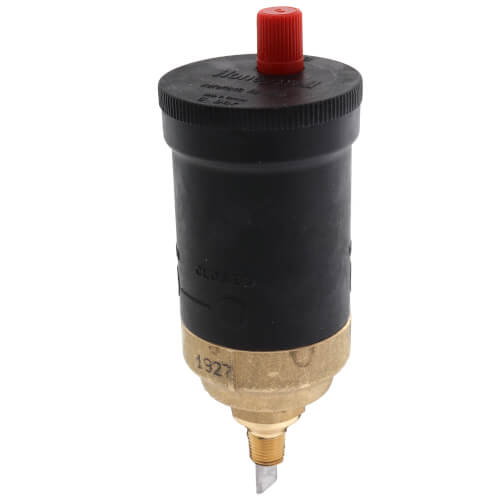

The Honeywell Braukmann EA122A Automatic Air Vent purges air from high pressure mains and equipment in hot or cold closed water systems. This ensures reliable system operation, reduces corrosion risk, and eliminates noisy pipes, making it an ideal solution for commercial and industrial applications:

• Includes removable float/valve assembly for easy servicing.
• Not for use in steam systems.
• Body, cover and float assembly made of thermoplastics.
• Internal parts made of corrosion-resistant and chemical-resistant materials for use with water systems containing light concentrations of propylene glycol, mineral oils, or petroleum-based oils.
• Oil resistant seal.
• EPDM seat disc and O-ring.

• Description: Automatic air vent with built-in shutoff valve and leakage guard, oil resistant
• Application: Hydronics
• Connection Type: NPT Male
• Connection Size (in.): 1/8"
• Size (inch): 1/8"
• Maximum Safe Operating Pressure (psi): 90 psi
• Maximum Safe Operating Pressure (kPa): 620 kPa
• Maximum Operating Temperature (F): 212 F
• Maximum Operating Temperature (C): 100 C
• Dimensions (in.): 5-1/4" long x 1 7/8" diameter
• Dimensions (mm): 133 mm long x 48 mm diameter
• Corrosion Resistant: Internal parts made of corrosion-resistant and chemical-resistant materials for use with hydronic systems that may contain concentrations of propylene or ethylene glycol, mineral oils, or petroleum-based oils.
